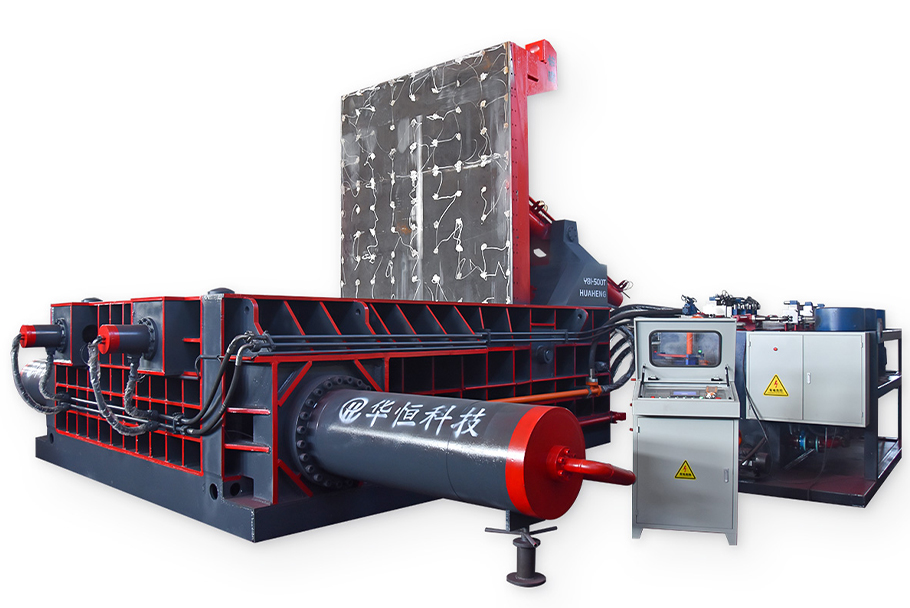

Y81-500T-Jiangyin Huaheng Heavy Industry Technology Co., Ltd

Product

Hello, your current location：Product > Y81-500TY81-500T

Product Features:

Used to extrude various metal waste materials (scraps, shavings, scrap steel, scrap aluminum, scrap copper, scrap stainless steel) with a thickness of less than 6mm into qualified furnace materials in various shapes such as rectangular prisms, octagonal shapes, cylindrical shapes, etc. Suitable for scrap steel processing and distribution centers (bases), scrap car dismantling and remanufacturing enterprises, steel and non-ferrous metal industries, etc.

Product features:

1. All models are driven by hydraulic pressure and can be operated manually or controlled automatically by PLC.
2. There are several ways to retrieve packages, including flipping packages, pushing packages sideways, pushing packages forward, and manually picking up packages.
3. Can be equipped with a diesel engine as a backup power source.

Technical parameter table:

Model	Master cylinder pressure (ton)	Box size (L × W × H/mm)	Package size (W × H/mm)	Power (kw)
Y81/F-125T	125	1400×900×600	250 八角	22
Y81/F-160T	160	1600×1200×800	400×400	37
Y81/F-200T	200	16001200800	400×400	37
Y81/F-200T	200	1800×1400×800	300 八角	2×22
Y81/F-250T	250	2000×1400×900	500×500	2×22
Y81/F-250T	250	2000×1750×900	300 八角	2×30
Y81/F-250T	250	2500×2000×1200	600×600	2×30
Y81/F-315T	315	2000×1750×900	300 八角	2×45
Y81/F-315T	315	3000×2500×1200	600×600	2×45
Y81/F-315T	315	3500×3000×1300	600×600/700×700	2×45
Y81/F-400T	400	3500×3000×1300	700×700	3×45
Y81/F-400T	400	5000×2200×1300	500×500	3×45
Y81/F-500T	500	3500×3000×1300	600×600	3×45
Y81/F-630T	630	3500×3000×1300	700×700	3×45
Y81/F-800T	800	3500×3000×1400	700×700	4×45
Y81/F-1000T	1000	3500×3000×1400	700×700	SF2×90
Y81/F-1250T	1250	3500×3000×1500	700×700	8×45
Y81/F-1500T	1500	3500×3000×1600	700×700	4×75
Y81/F-2000T	2000	4000×3000×1700	700×700	SF5×90
